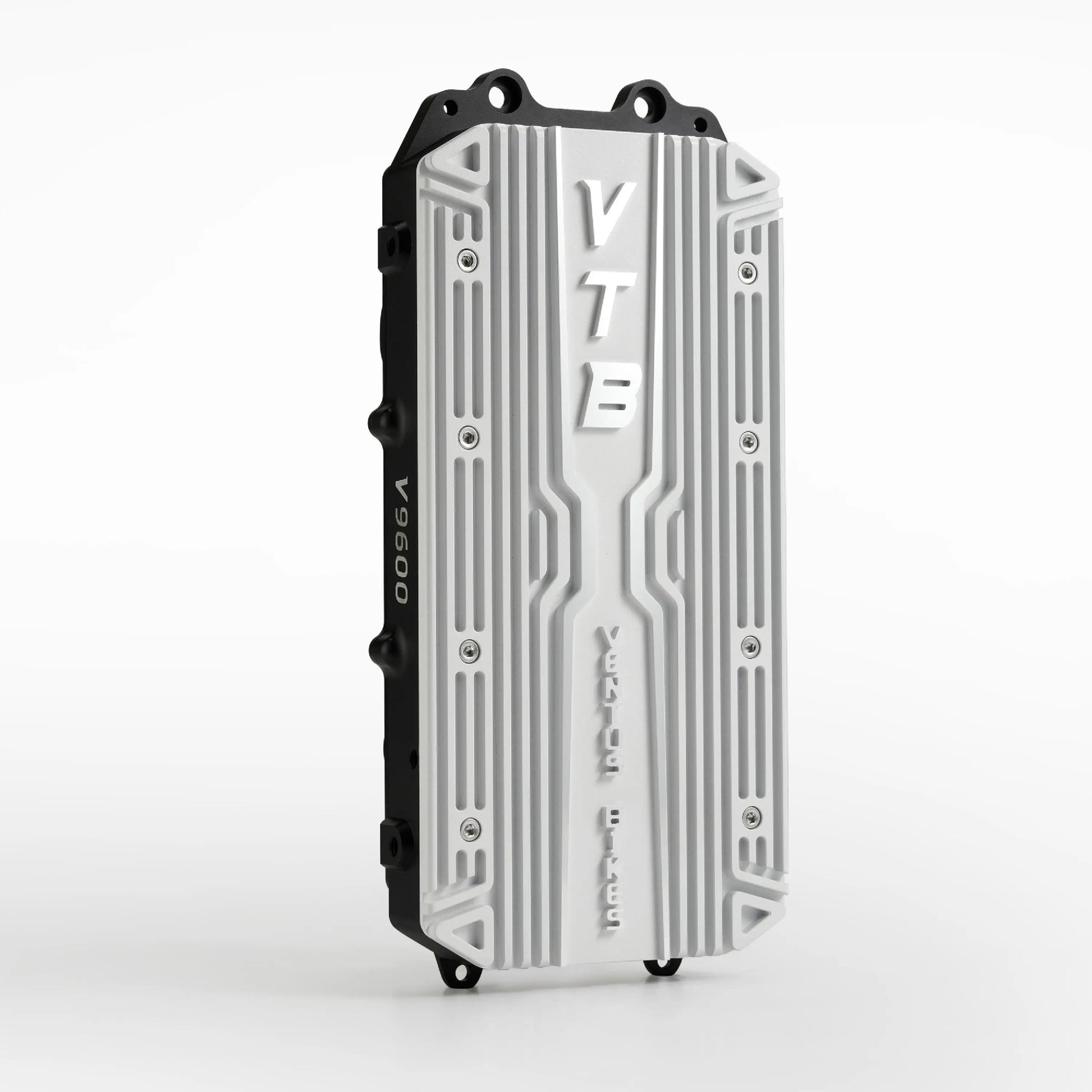

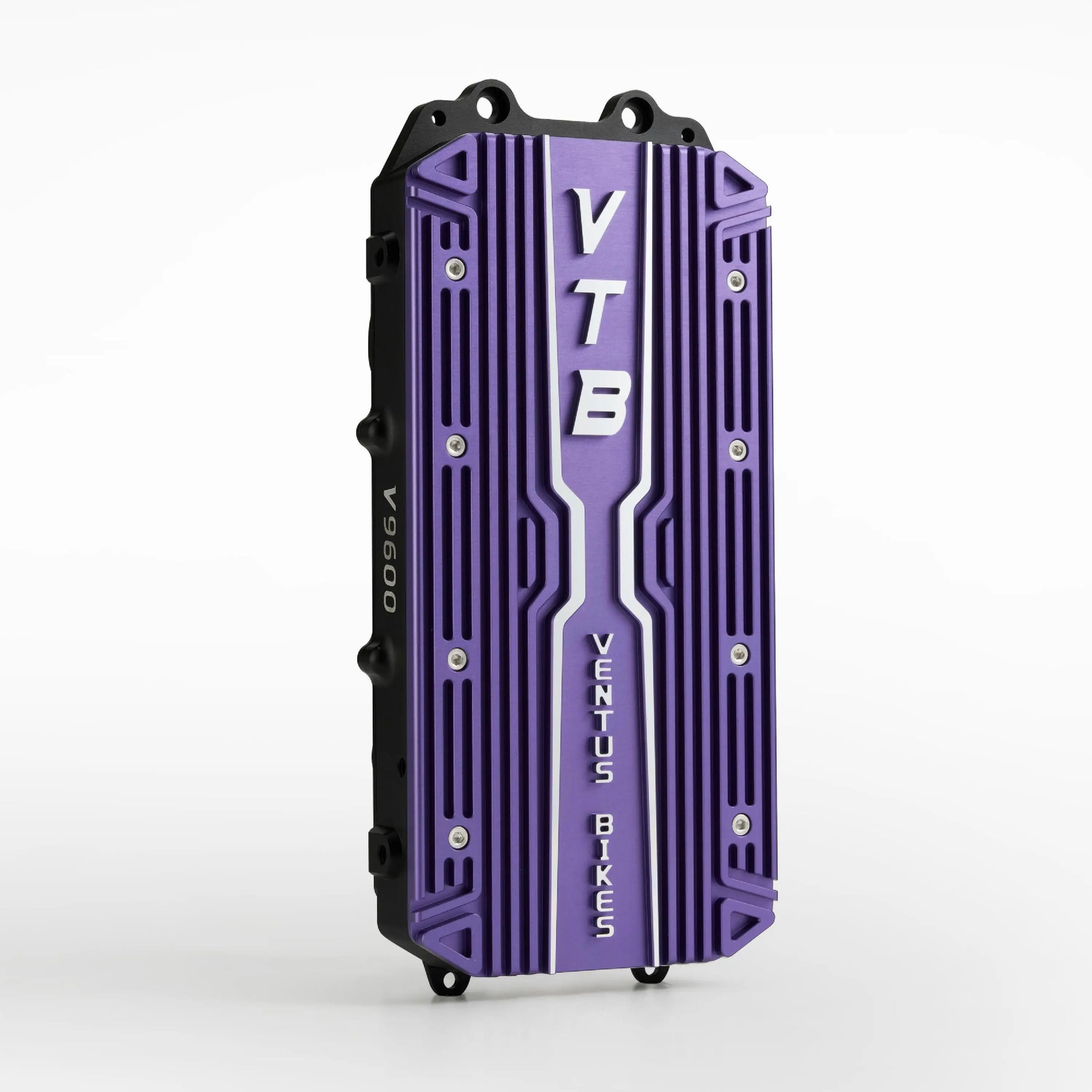

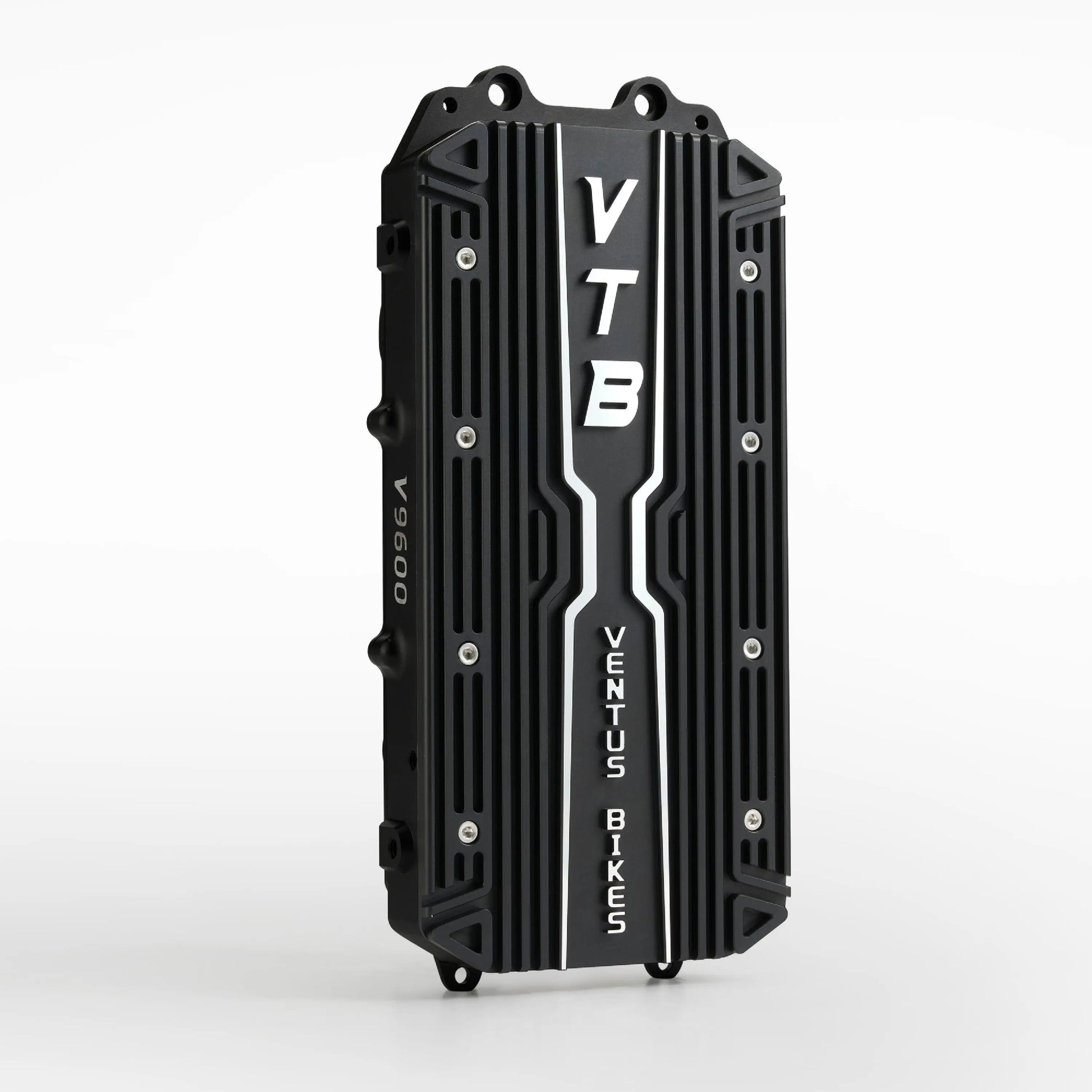

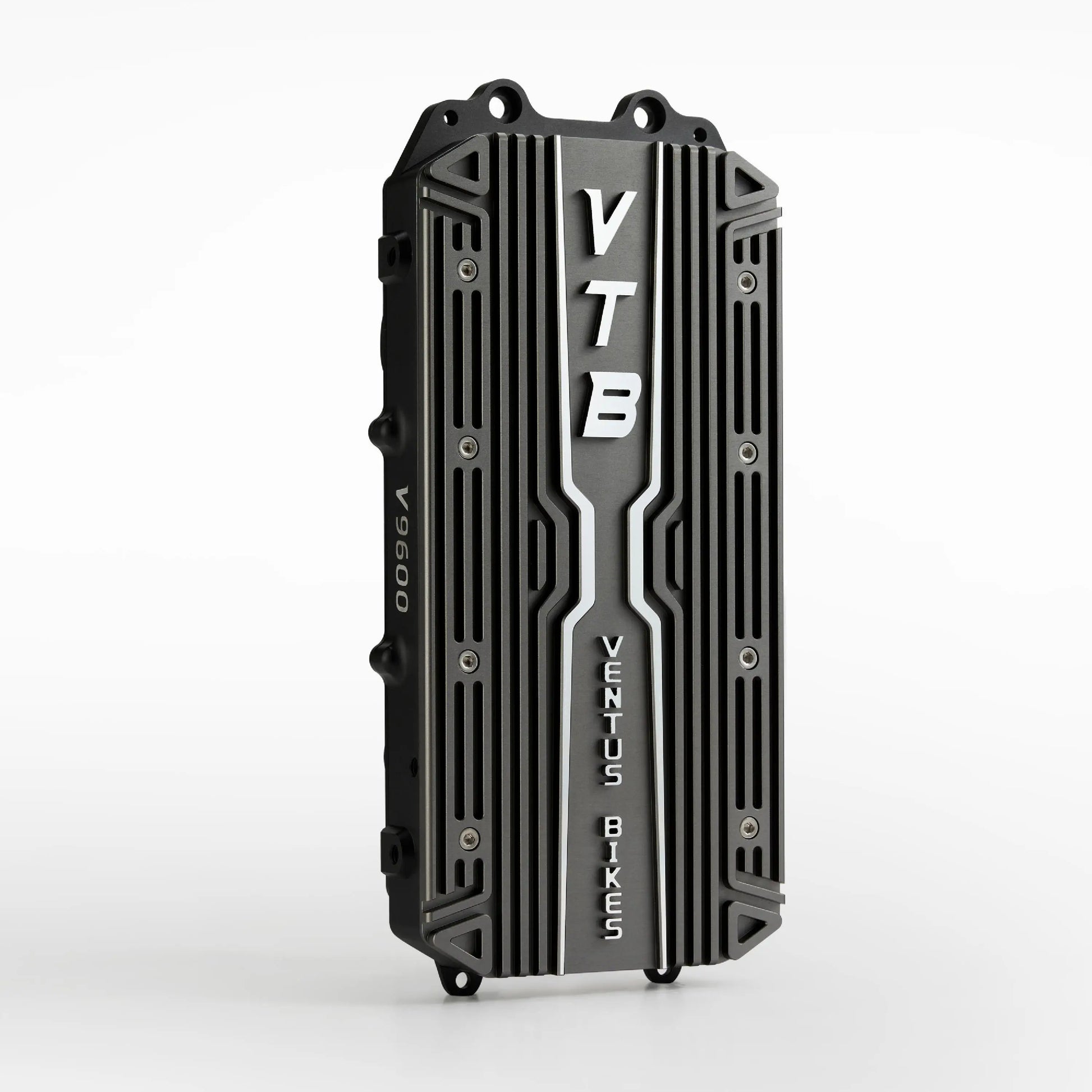

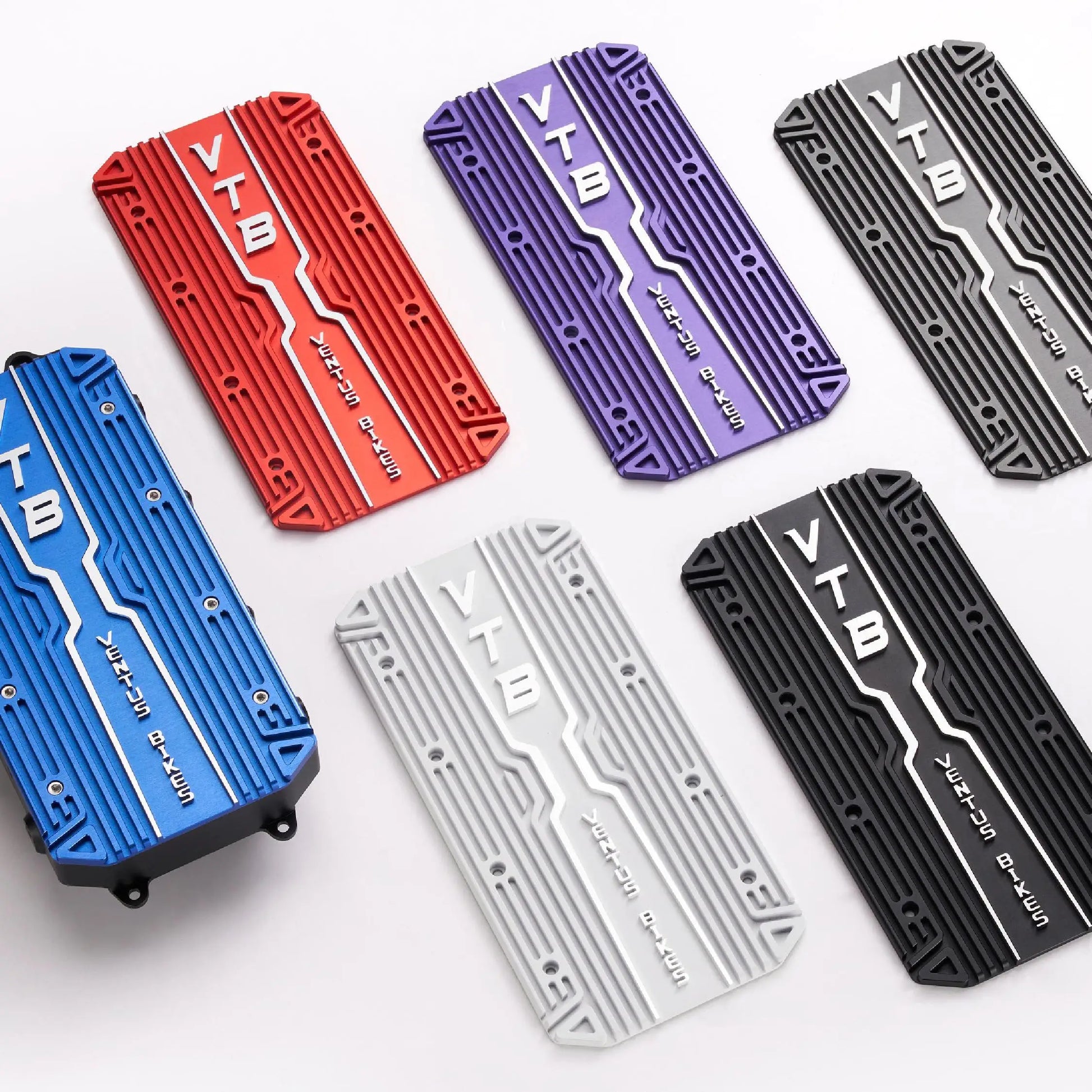

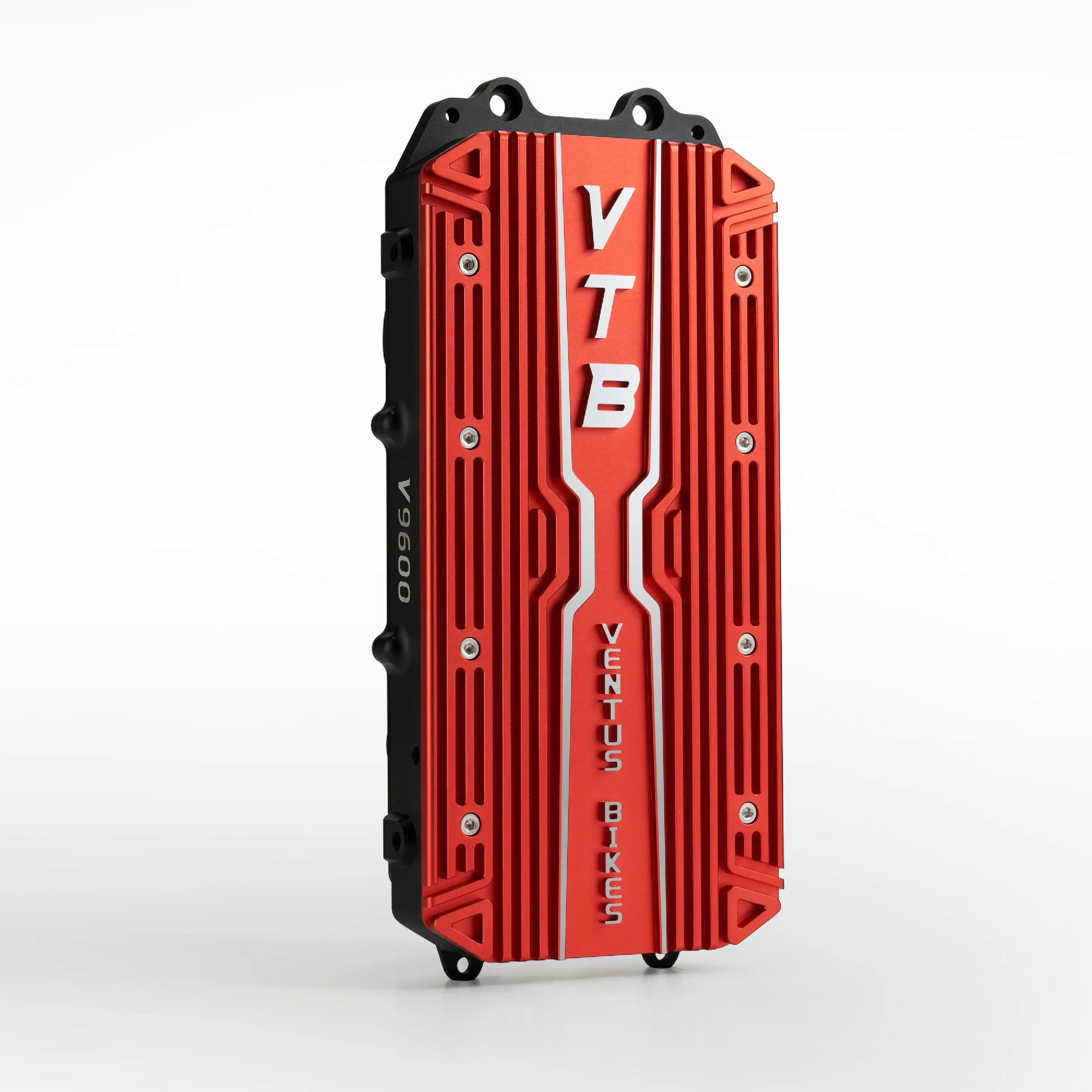

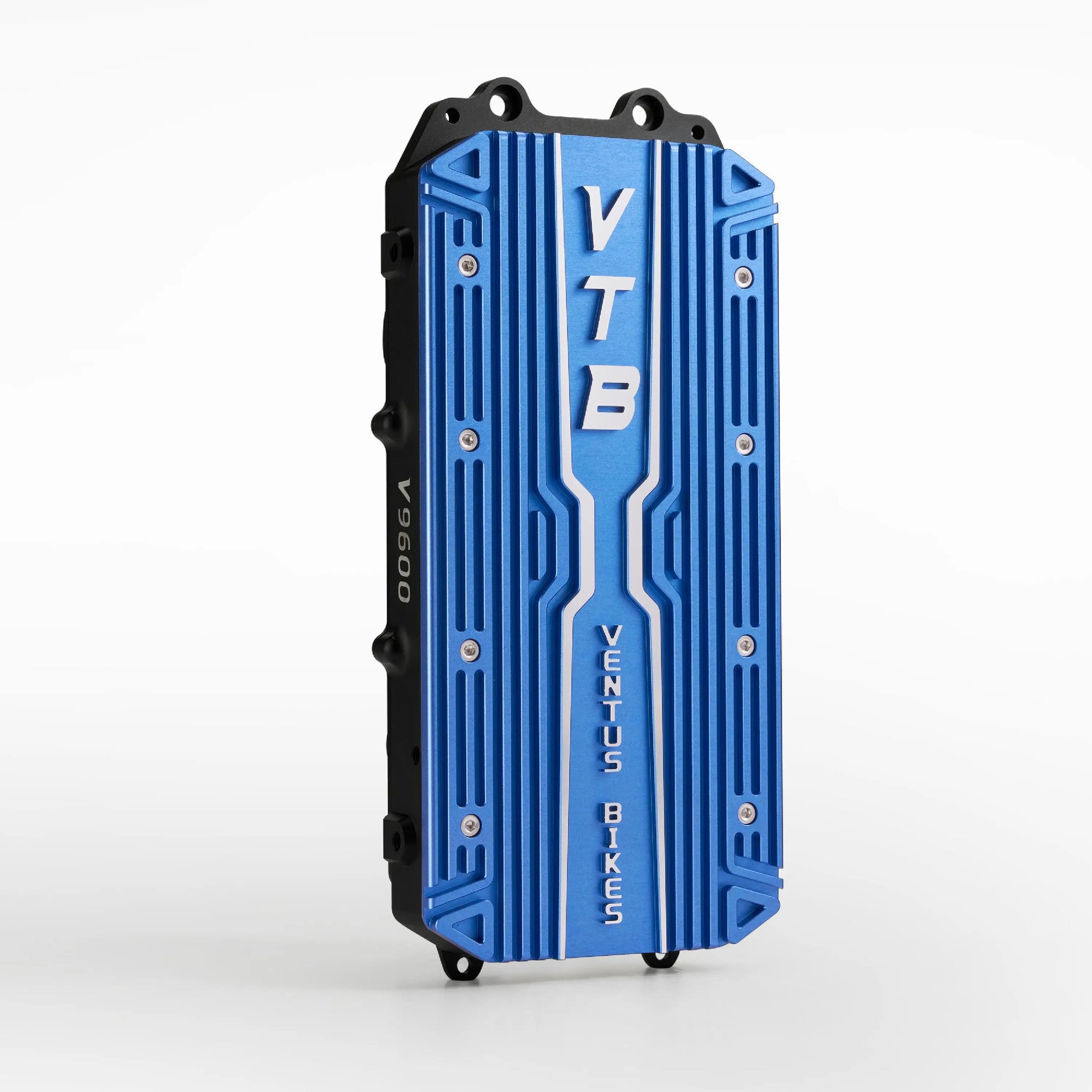

VTB Ventus Bikes V9600 Controller

VTB Ventus Bikes V9600 Controller
Compatible with Surron, Talaria, 79Bike, E-Ride, and Ventus One models.

Compatible Models:

• Sur-Ron Light Bee

• Sur-Ron Ultra Bee

• Talaria Sting

• Talaria X3

• 79Bike Falcon

• E-Ride Pro-SS

Compatible Motors:

• VTB Beast 28kW / 35kW

• Stock Light Bee / Ultra Bee Motors

• Stock Sting 8.0 Motor

• Stock E-Ride Motor

• QS165 Motor (QS Motor) / SOTION LTXS Motor

• EBMX XLB-60 / XUB-80 Motor

• KO Encoder Motor

Compatible Batteries:

• Stock Light Bee / Sting 8.0: 60V 38.5Ah / 40Ah (Samsung/LG)

• Stock Talaria X3: 60V 38.5Ah (LG)

• 6055: 60V 55Ah

• 6045: 60V 45Ah

• 6355: 63V 55Ah

• 6642: 66V 42Ah

• VTB7245-9C: 72V 45Ah Samsung 50S

• VTB7250-9C: 72V 50Ah Samsung 50S

• VTB7250-5C: 72V 50Ah Samsung 50G

• Stock Ultra Bee: 74V 55Ah Farasis P53B

• Stock E-Ride Pro SS: 72V 40Ah Samsung 50G

• EBMX / EWATT: 72V 42Ah / 57Ah / 76Ah

• EWATT: 80.3V 76Ah, 72V 44Ah

• 8045: 80V 45Ah

Features:

• Max line/phase current: 500A / 960A

• Peak power: 44kW

• Operating temperature: -25℃ to 80℃

• Controller type: Sine Wave Vector Control

• Absolute max voltage: 30V–99V

• Working voltage: 48V–93V

• Battery series: 14–22s (NCM)

App Features:

• Free download on multiple platforms

• Throttle fine-tuning

• Low battery throttling & power auto-tuning

• Multiple programmable power settings

• EBS gear adjustment

• Keyless entry

• E-assist brake

• Motor & speed calibration

• Bluetooth password protection

• Power-off protection (Brake, Tilt, Stand)

Installation & Setup:

• Color display included

• Installation hole diagram provided (Light Bee: four positions in rectangular frame)

• Motor connection: Choose either the general encoder motor adapter or Hall motor adapter based on your motor. Only one adapter is needed. Stock VTB motors do not require adapters.

• Alternative backup cable included for added convenience

Packing List:

• Controller unit

• Display

• Adapters & cables

• Installation guide
